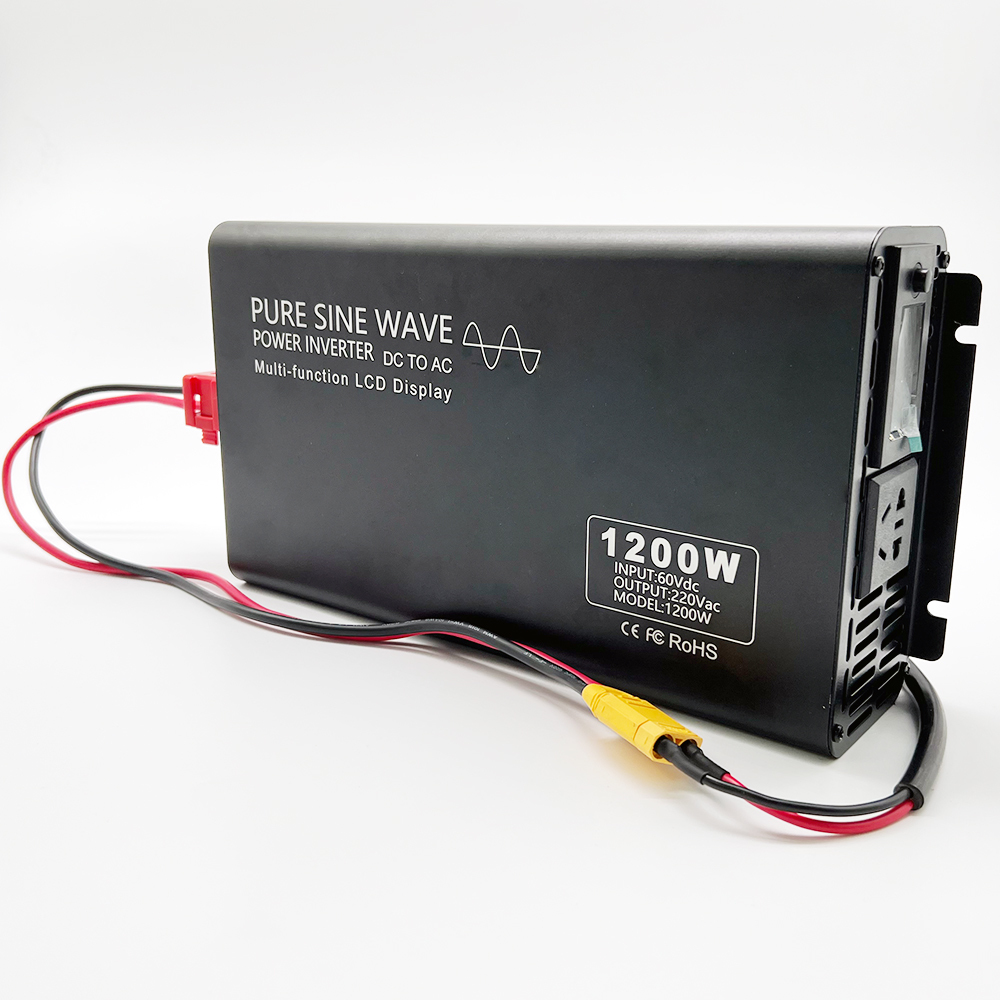

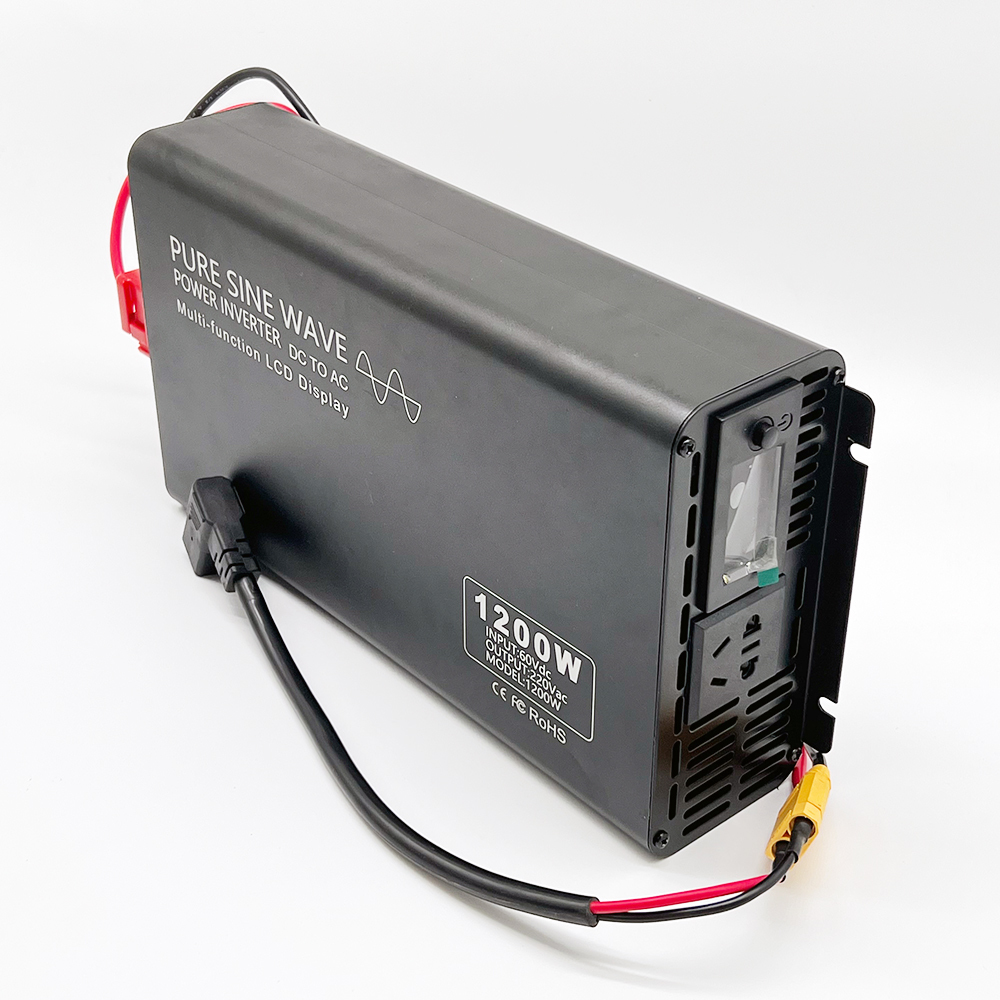

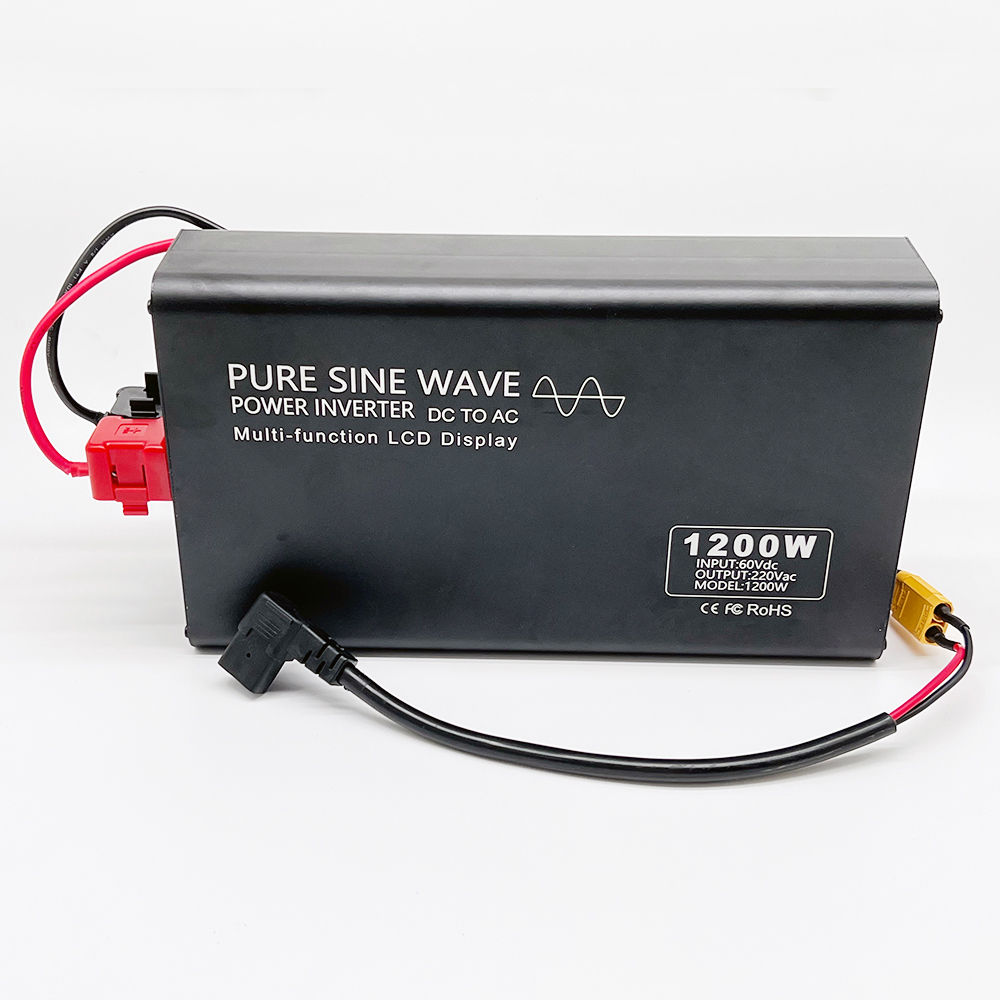

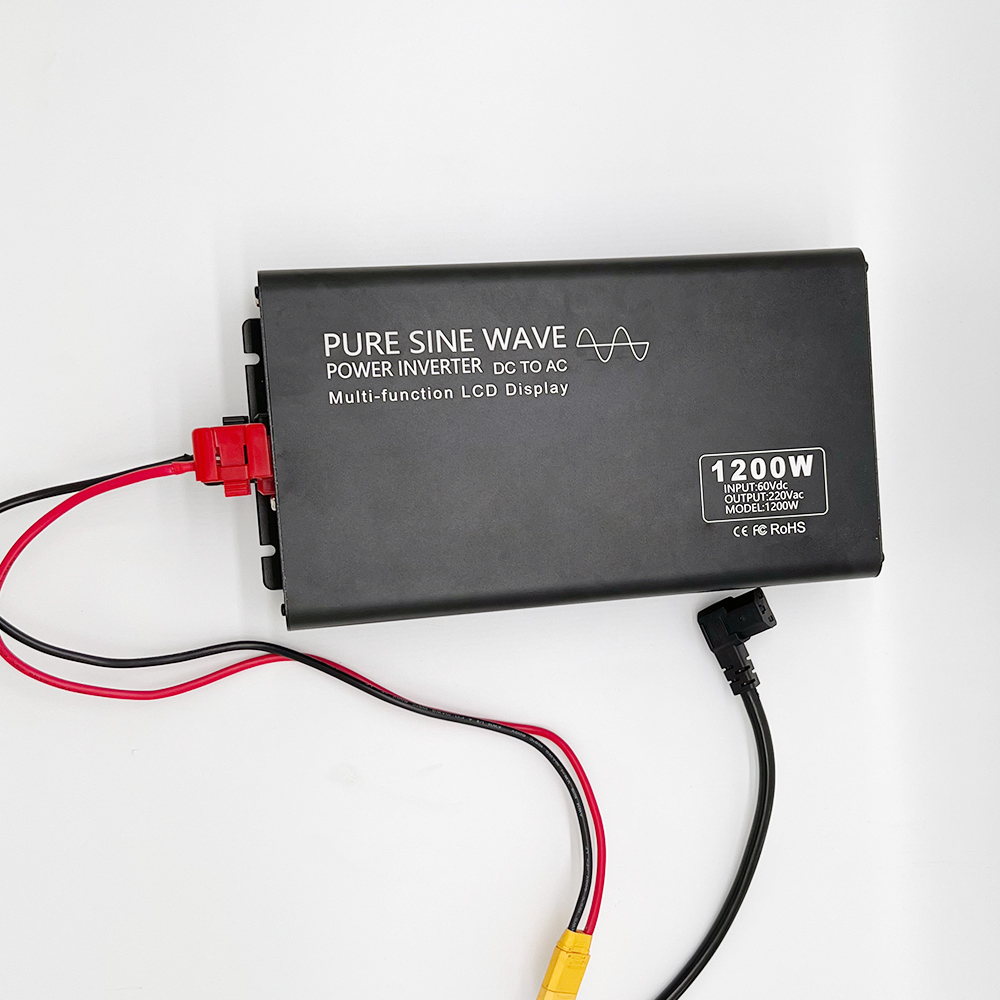

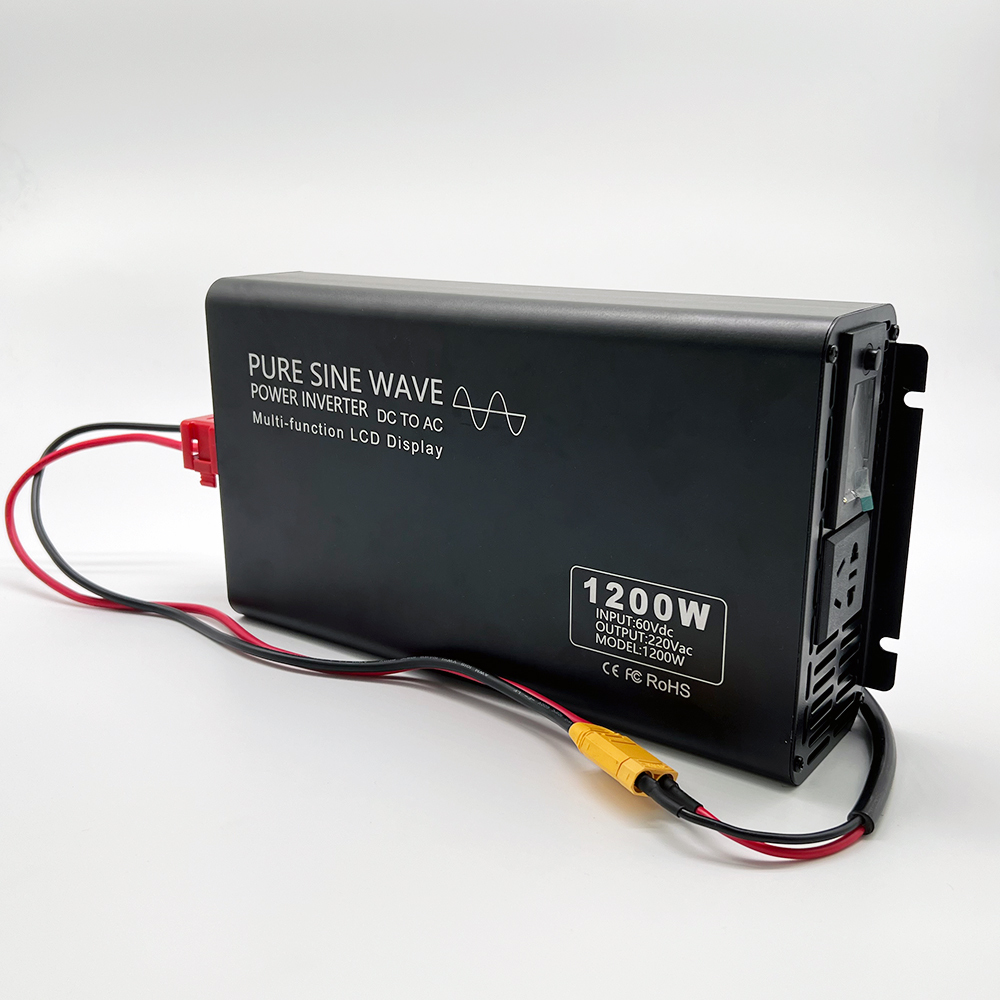

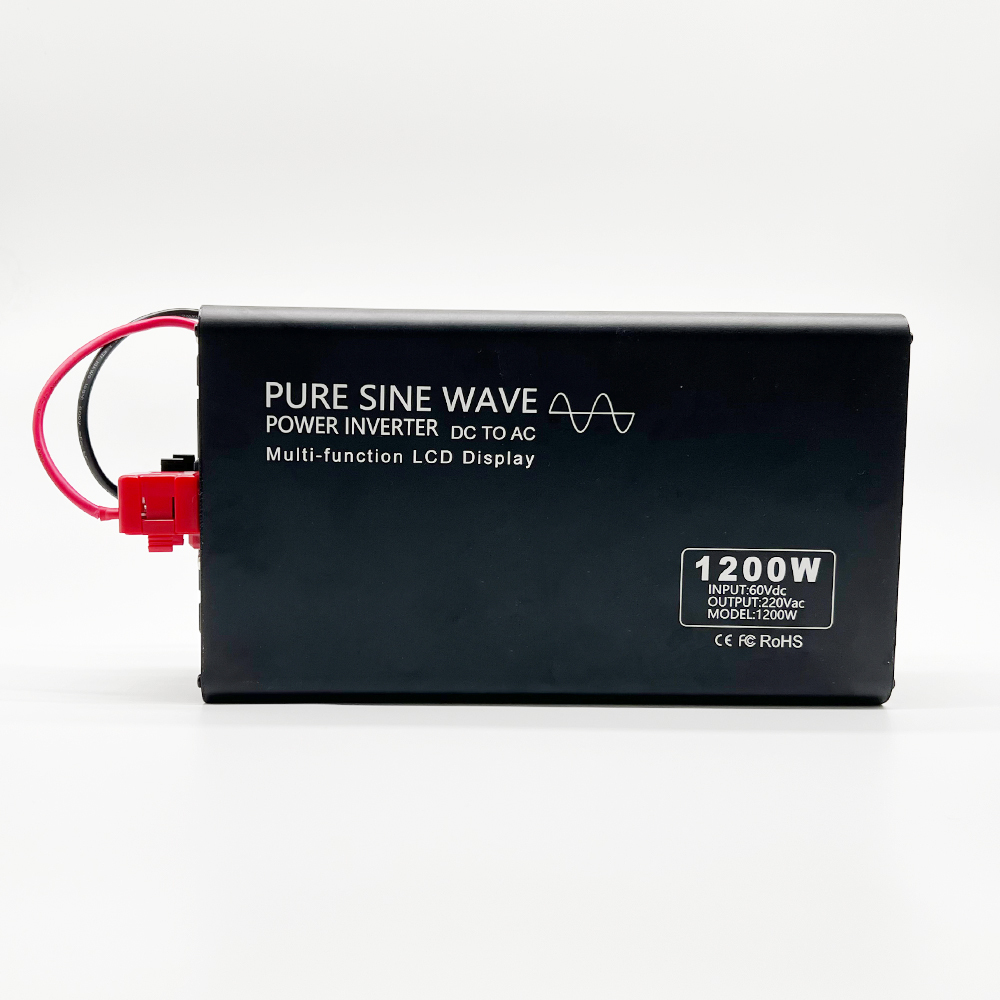

600W 1000W 1500W 2000W 12V 24V 48V 110 220V Pure Sine Wave Power Inverter

SKU:
How to solve the power problem if you want to go camping?
7Plus provides you with a convenient solution—inverter.
The inverter is used to convert DC electrical energy (storage battery) into AC electrical energy to provide power for electrical appliances
5.0 (3 Reviews)
11 Sold
$75.00 $52.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China Factory
  • Power:
    600W
    1000W
    1500W
    2000W
  • Output Voltage:
    110V
    220V
    Please select the information you wantX
Quantity
-
+
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • 600W/1000W/1500W/2000W 12V 24V 48V 110/220V Pure Sine Wave Power Inverter
  • Description
INVERTER
Product model RX1500Z (12V) RX1500Z (24V) RX1500Z (48V)
Output Continuous Power 1500 Watt
peak power 3000 Watt
Output Waveform Pure sine wave (distortion rate≤3%)
Output frequency 50Hz±0.1% or 60Hz±0.1%(optional)
Output voltage 100~110VAC / 200~220VAC(optional)
Input Input voltage 12 VDC 24 VDC 48 VDC
Input voltage range 10.0~15.0 VDC 20.0~30.0 VDC 40.0~60.0 VDC
Low voltage alarm 10VDC±0.5VDC 20VDC±0.5VDC 40VDC±0.5VDC
Low voltage shutdown protection 10.0VDC±0.5VDC 20.0VDC±0.5VDC 40.0VDC±0.5VDC
Overvoltage Shutdown Protection 15.0VDC 30.0VDC

60.0VDC
Conversion efficiency 90% (full load)
No-load current < 0.6A

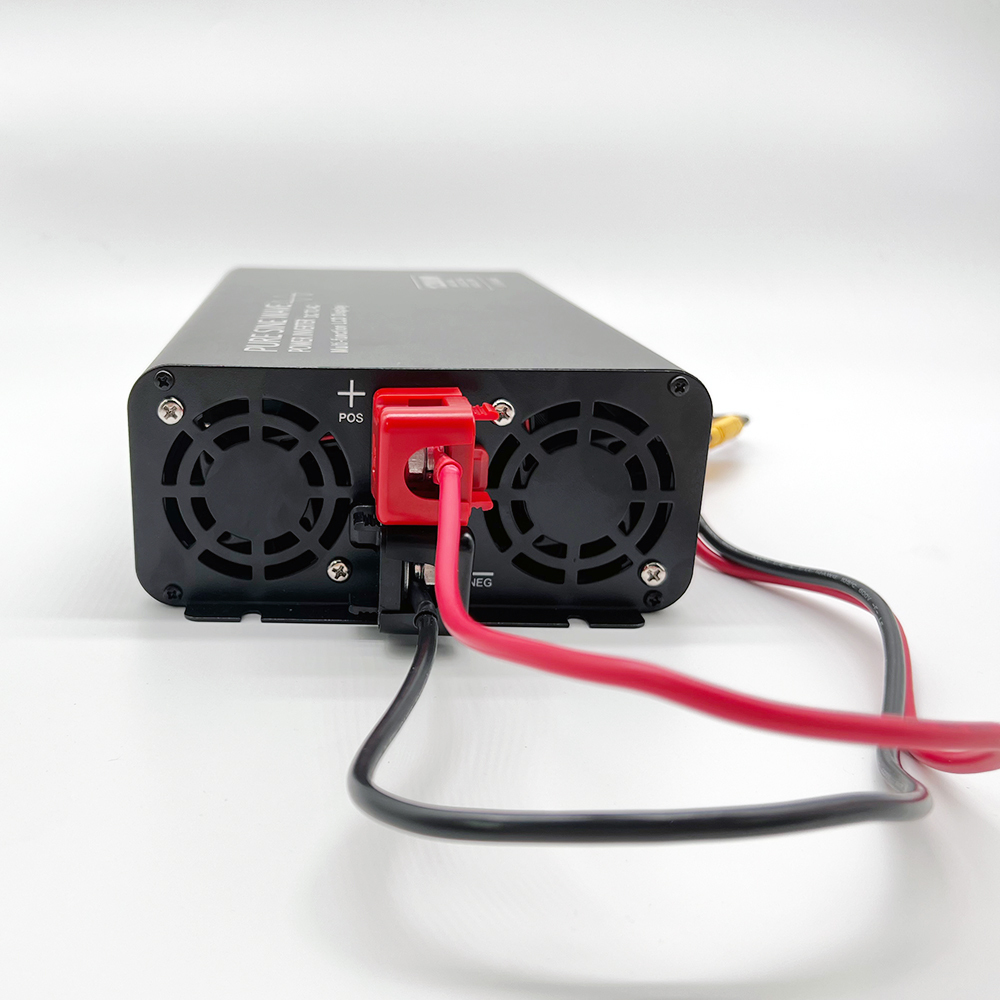

Input terminal Red/Black Individual Terminals

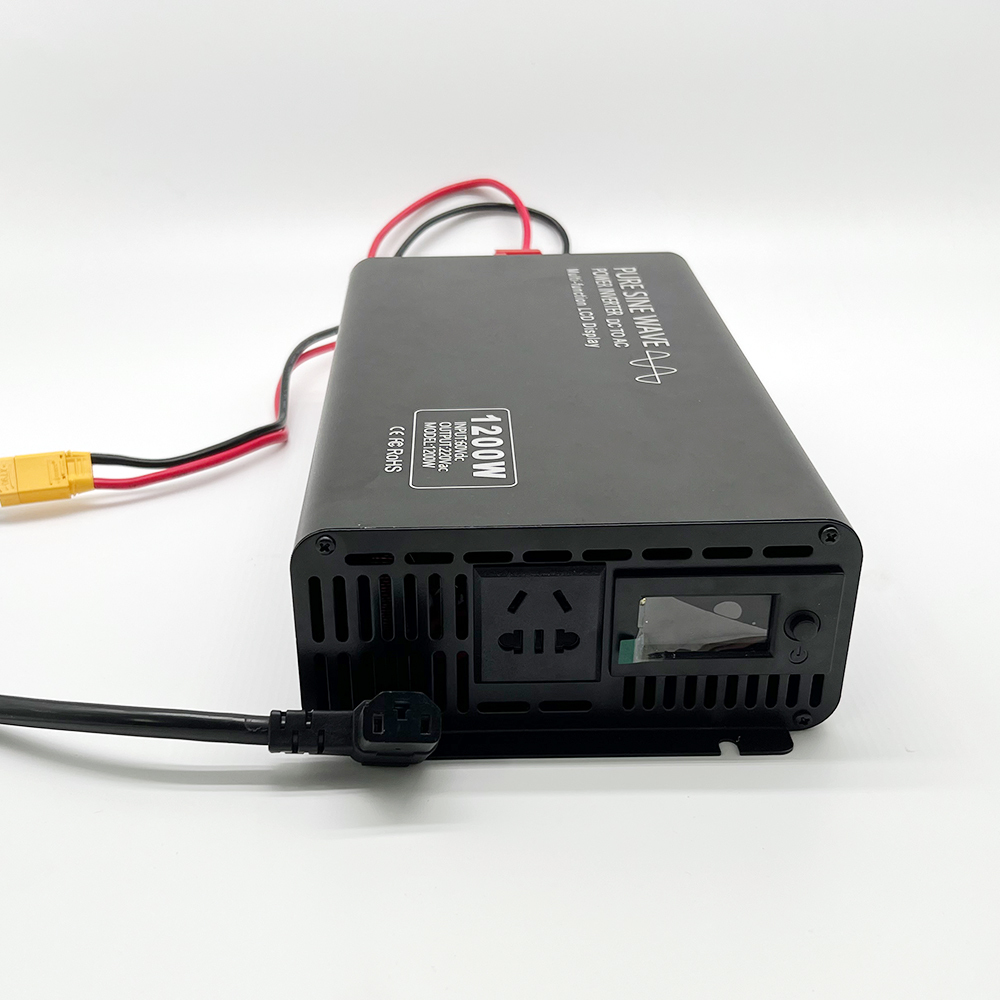

Output Socket
Working temperature range -10℃ to +50℃
Operating humidity range 20%~90% no condensation
Storage temperature range -30℃ to +70℃
Cooling Intelligent temperature-controlled air cooling
Overheating protection 70℃
Packaging Information Product Size 360*173*76MM
Product weight About 3.5 Kg
Product inner box size 45.9*13.6*22.5cm
Outer box size 48*47.5*30cm
CT'N 4PCS/CT'N
Outer box weight About 15 Kg

Test items Load power Input voltage Input Current Output voltage (V) Output frequency
Result 0W DC12.6V 0.6 A AC 220±5% 50±1HZ
100W DC12.6V 7.9A AC 220±5% 50±1HZ
200W DC12.6V 15.8A AC 220±5% 50±1HZ
600W DC12.6V 47.6A AC 220±5% 50±1HZ
1000W DC12.6V 79.3A AC 220±5% 50±1HZ
1500W DC12.6V 119.0A AC 220±5% 50±1HZ


Precautions

●The inverter must be installed in a ventilated and dry place away from flammable and explosive materials.
●Use where children are to be kept away from activities.
●The product must be placed correctly and securely during use.
●When connecting the battery wire, the bolts should be tightened to ensure that the battery wire and the copper post of the terminal have good electrical contact.
●This operation guide is for the description of some of the company's conventional products, not including all models, but the operating principles are basically the same.
